SELF-POWER YOUR HOME
WITH TESLA POWERWALL 2.0

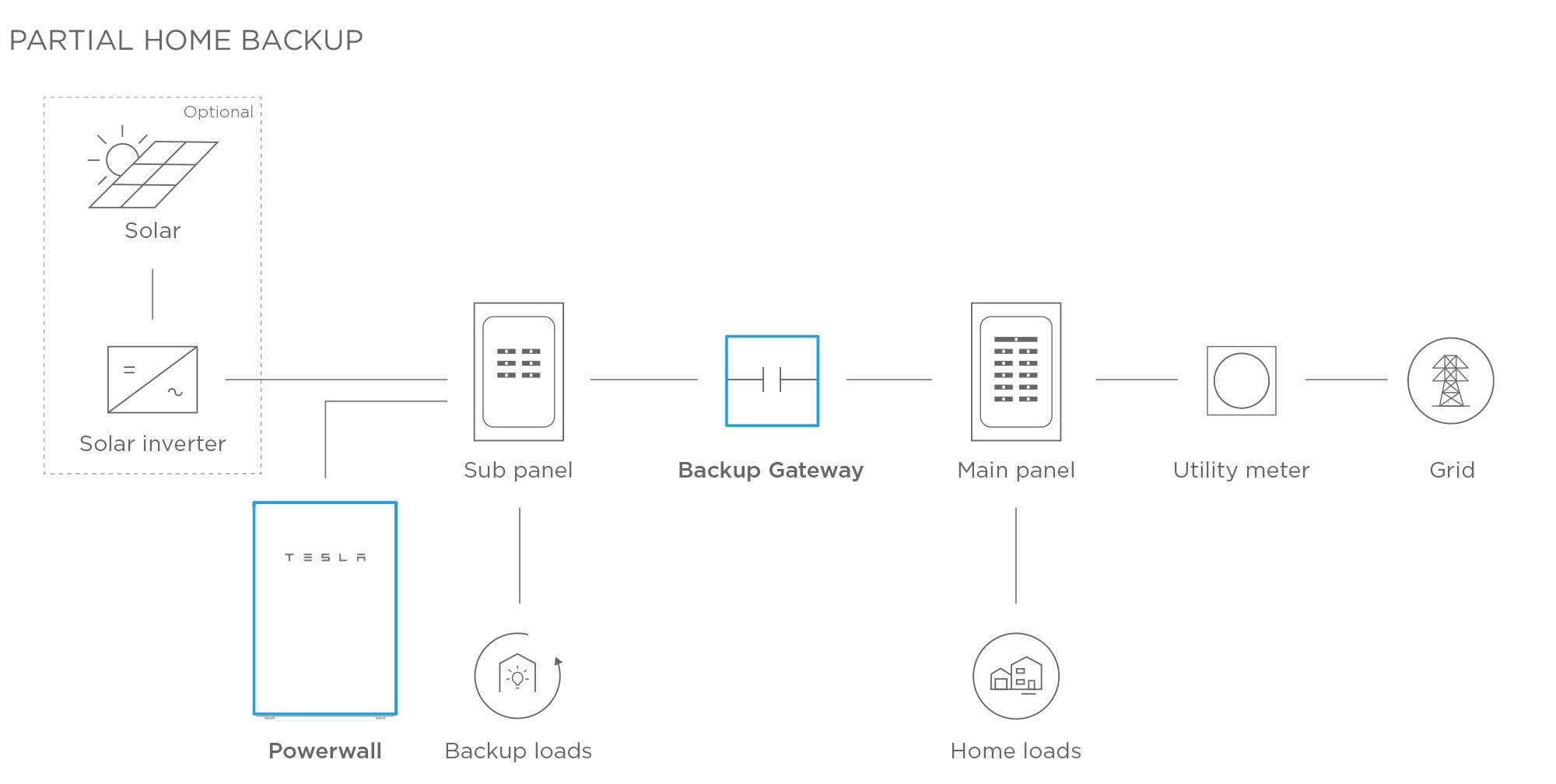

OUR COMPREHENSIVE ENERGY SOLUTION INCLUDES TESLA POWERWALL 2.0
SOLAR PANELS
Solar panels convert sunlight into electricity that powers a home during the day, as well as charges the battery unit. Without input from the solar panels, the Tesla 2.0 Powerwall home battery unit is able to minimize time-of-use power tolls by adapting energy consumption in the homeowner’s favor.
BATTERY UNIT
The battery unit is continuously charged by solar panels when the sun is out ⏤ or from the utility grid when rates are low.
INVERTER
The inverter turns the stored DC power from the battery into AC power that all of the appliances and gadgets in the house can use. The inverter can push out the resulting AC power at 7kW peak or at a 5kW continuous rate.
ELECTRICAL PANEL
An electrical panel (also known as a distribution board, panelboard, or breaker panel) is found in most households. As part of any home’s electric system, the electrical panel divides power into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit. Electricity to the electrical panel comes from the inverter.
Now Is The Time To Contact Solar Optimum.
Solar Optimum Is Changing The Way California, Nevada, and Arizona Homeowners Conserve Energy.TECHNICAL SPECS
USABLE CAPACITY
13.5 kWh
DEPTH OF DISCHARGE
13.5 kWh
EFFICIENCY
90% round-trip
POWER
7kW peak / 5kW continuous
SUPPORTED APPLICATIONS
Solar self-consumption
Time of use load shifting
Backup
Off grid
WARRANTY
10 years
SCALABLE
Up To 9 Powerwalls
OPERATING TEMPERATURE
-4˚ to 122˚F / -20˚C to 50˚C

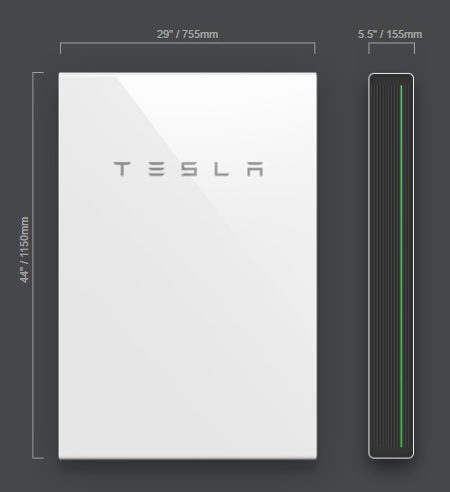

DIMENSIONS
L x W x D: 44″ x 29″ x 5.5″
(1150mm x 755mm x 155mm)
WEIGHT
264.4 lb / 110 kg
INSTALLATION
Floor or wall mounted
Indoor or outdoor
CERTIFICATION
UL and IEC certified
Grid code compliant
AROUND THE CLOCK POWER
In daylight, the Tesla 2.0 Powerwall home battery powers your home and stores away the surplus energy into the system’s battery. At night, during a blackout, in a time of crisis, or any time the grid is unavailable, Tesla Powerwall makes energy available for your household appliances.
SAVINGS
An all-inclusive energy system, Tesla 2.0 Powerwall helps homeowners save money by using the electricity that the system generates and stores on a daily basis. The benefits of being connected to the grid remain, but dependence on utility companies is reduced. Tesla Powerwall ensures predictable energy savings — in addition to Energy Peace of Mind.
WE HANDLE EVERY STEP
From obtaining permits to installing each component, Solar Optimum handles it all. After a consultation, our Energy Experts at Solar Optimum will design your energy solution – a system that will transform your home into a self-powered home!
This is a view of the mobile app monitoring system. As you can see, the moment the sun rises, the home begins to generate power to the solar panels and your Tesla Powerwall. This is an example of a 3kW solar system generating power to the home (2.0 kW) and the Powerwall battery (1.0 kW).
